Acoustic Motorised Roller Banners

Acoustic motorised Roller Banners are a practical way to implement a flexible acoustic environment within a performance space.

Our acoustic banner range has been designed to allow for easy deployment and versatile hanging methods, enabling them to be used in a multitude of applications, be it free hanging in the apex of a ceiling area or hung against a wall to create a self-containing, absorptive surface. Each banner system allows for a variable acoustic performance of a given area or space at the click of a button. The banner systems come with a housing unit that enables the banners to be retracted and hidden away in their specially designed housing units, giving the venue the ability to maintain its original appearance and acoustic qualities.

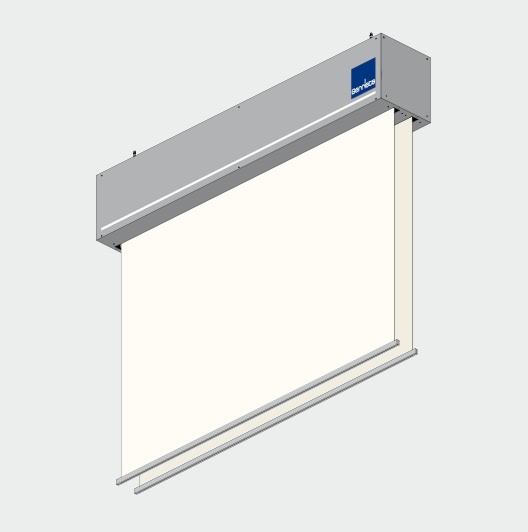

Acoustic Roller Banner G-SORBER

With the G-SORBER system Gerriets (major suppliers to John Herber Ltd) presents further development in the field of variable room acoustics.

  • Flexible roller assembly for permanent installation including control system.
  • The G-SORBER system consists of a roller assembly with a maximum of two fabric layers enclosed in a protective housing.
  • Sound Absorption Class: A.
  • Double layer of specially developed Trevira CS wide width fabric guarantees high absorption.
  • Seamless fabrication.
  • Reverberation time can be adjusted between different musical styles such as classical, unamplified,
    acoustic and electronic (amplified) music.
  • Custom colours for the textile are possible.
  • Digital printing on the fabric is possible.

Patent pending – registered design.

4.2 G-Sorber Catalogue (download here)

Technical Data

  • Fabric width ranging from 1.00 – 4.40 m (3’3″ – 14’5″).
  • Maximum curtain height of 10.00 m (32’9″).
  • Single roller design with double layer textile.
  • Compact housing dimensions: 300 mm wide x 600 mm high (12″ wide x 24″ high).
  • Fabric roller assembly can be installed after housing is installed.
  • Simple maintenance.
  • Can be either wall or ceiling mounted.
  • Many different control configurations/presets are possible.

John Herber Ltd have a range of motorized acoustic banners available to suit most venues, technical requirements and budgets. Please contact us at info@johnherber.co.nz for further information.
